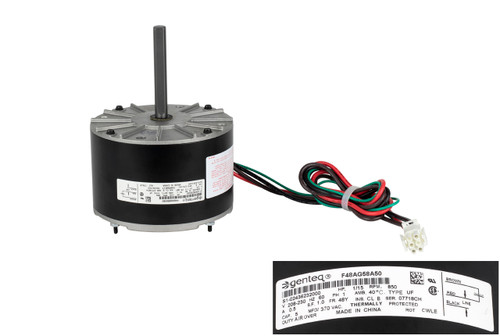

York Coleman S1-02436232000 Replacement Part
NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # S1-02440888000
Includes:
- (1) - Fan Motor (S1-02436232000)
- (1) - Instructions (-)
Specifications
- Manufacturer: genteq
- Model # F48AG58A50
- Horsepower: 1/15
- Voltage: 208-230
- Hertz: 60
- Amperage: 0.50
- Phase: Single
- RPM: 850
- Speeds: 1
- Frame: 48Y
- Thermally Protected
- Insulation Class: B
- Motor Duty/Cooling: Continuous Air Over
- Bearings: Ball
- Capacitor Required: 5 MFD @ 370 VAC
- Enclosure: Enclosed
- Mounting: Studs
- Rotation: Clockwise Lead End
- Shaft Type: Single Side Flat Shaft
- Shaft Diameter: 1/2"
- Shaft Length: 3 9/16"
Country of Origin: China
Note: Always check the fan blade on your fan assembly. Bad or unbalanced fan blades can cause premature motor failure due to vibration. If you are not sure what fan blade fits your fan assembly, call us at 734-326-3900.
🚀 To prevent premature motor failure, it is highly recommended you change your capacitor along with your motor. Capacitors out of tolerance can cause motors to overheat and prematurely fail. If you are unsure of what capacitor is required for your unit, please call us at 734-326-3900.
Replaces Old York Coleman Part Numbers
- S1-02426029000
- S1-1468-415P
- S1-02426029000
Other Part Numbers
COND Fan Motor, genteq, F48AG58A50, S1-02436232000, Permanent Split Capacitor, Source 1, HVAC SERVICE PARTS
Fits Models:
(Press ctrl + F to find model number below.)
Various. (Call 734-326-3900 with your model and serial number for more information.)
