Thermo Pride AOPS7719 Furnace Parts Cma*/Cmc1*

Thermo Pride AOPS7719 Replacement Part

Parts purchased must be installed by a qualified technician. If you need help locating a technician, contact us.

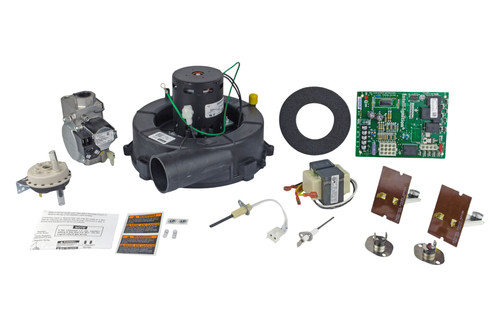

Includes:

• (1) - Draft Inducer W/ Gasket (AOPS7416)
• (1) - Integrated Fan Control Board (350836)
• (1) - Gas Valve (AOPS7744)
• (1) - Transformer (350464)
• (1) - Pressure Switch (AOPS7520)
• (1) - Nat. To L.P. Conversion Kit (AOPS7742)
• (2) - Warning Labels (-)
• (2) - L.P. Labels (-)
• (2) - Regulator Spring (-)
• (1) - Instructions (37-6535001)
• (1) - Flame Sensor (350759)
• (1) - Igniter (380650)
• (1) - Limit Switch (350495)
• (1) - Limit Switch (350817)
• (1) - Aux Limit Switch (350891)
• (1) - Flame Rollout Limit Switch (350485)

Specifications

• Inducer W/ Gasket:
• Manufacturer: Fasco
• Made In Mexico
• Voltage: 115
• Hertz: 60
• Amperage: 2.1
• RPM: 3400
• HP: 1/30
• Sealed Ball Bearing
• Permanently Lubricated
• Class: B
• Gasket:
• Color: Black
• Outer Diameter: 4-5/8"
• Inner Diameter: 2-12"
• Control Board:
• Manufacturer: Emerson
• Color: Green
• Length: 4-1/2"
• Width: 6"
• Made In Mexico
• Gas Valve:
• Manufacturer: White Rodgers
• Voltage: 24
• Hertz: 50/60
• Amperage: .280
• Max Pressure: 1/2 PSI
• Water Column: 3.5"
• Length: 5-3/4"
• Transformer:
• Manufacturer: Basler Electric
• Made In Mexico
• Primary:
• Voltage: 120
• Hertz: 50/60
• Secondary:
• Voltage: 24
• Length: 2"
• Width: 2-1/2"
• Pressure Switch:
• Manufacturer: Cleveland Controls
• Made In USA
• Water Column: .10"
• Nat. To L.P. Conversion Kit:
• Manufacturer: White Rodgers
• For Use On 36G/H/J Series Two-Stage Combination Gas Valves With Field Adjustable Regulator Only
• Flame Sensor:
• Length: 4-1/4"
• Igniter:
• Manufacturer: White Rodgers
• Made In Mexico
• Length: 8-1/4"
• Limit Switch (350495):
• L190-30F
• Length: 3-3/8"
• Limit Switch (350817):
• L150-30F
• Length: 3-3/8"
• Aux Limit Switch:
• L120-20F
• Length: 2"
• Width: 1-1/2"
• Flame Rollout Limit Switch:
• L180F
• Length: 2"
• Width: 1-1/2"

Replaces Old Thermo Pride Part Numbers

• There are no older part numbers.

Other Part Numbers

5,954,476, 5,620,302, 7,861,708, 0444, JK7800241-1, 702110669, Fasco, U21B, M4721, 340330, LR36496, 12118111004364, 50A65-143-05, 5001 9669, 150-1833, 2127P, Emerson Climate Technologies, Intell-Ignition, Automatic Ignition System, 22113113611745, White Rodgers, 6047718, 6604538,36J23-213, 5001 7554, 380799, A131, BE121640GDD, 0131 G06A, Class 2 XFMR, NS2-1287-00, 350498, 41384-51-1221, 150638, Cleveland Controls, 92-1008M, 2203, PSE-YK1, 768A-143, 36T01B3, 44853, A2127, 6T01B3, 44909, A2138, 36TX21, A2118, 21444, 6673, 36T26, A2153, 017-7452024

Fits Models:

(Press ctrl + F to find model number below.)

Cma*/Cmc1*
