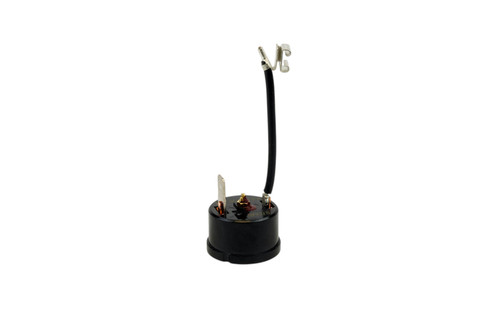

Tecumseh K90-27 Replacement Part
Note: IMPORTANT: This overload should be mounted and wired into the circuit exactly as the original overload. Make certain that all terminal screws are tight and all quick-connect fittings are secure. For specific compressor electrical drawings, refer to Tecumsehs Electrical Service Parts (ESP) Guidebook. CAUTION: The center screw on the overload locked and sealed at the factory. This seal should remain unbroken. Turning this screw, even slightly, will destroy the factory setting and make the protector useless.
Includes:
- (1) - Klixon Thermal Overload (MRA5708-113)
- (1) - Overload Instruction Sheet (14961462)
- (2) - Phillips Head Screws (-)
- (1) - Flat Head Screw
- (1) - Eyelet Terminal (-)
- (2) - Quick-Connect Terminals (-)
Specifications
- Manufacturer: Tecumseh
- Manufacturer Part #: K90-27
- NC
- Height: 5/8"
- Outer Diameter: 1"
- Lead Length: 2-1/4"
Replaces Old Tecumseh Part Numbers
- There are no older part numbers.
Other Part Numbers
Authorized Service Parts, Tecumseh, Tecumseh Products Company, K90-27, Overload Kit, 13-Jun-24, WARNING, Cancer and Reproductive Harm, www.P65Warnings.ca.gov, Parts K_Kits.lwl, X², 07F4AB, MRA5708-113, Tecumseh
Fits Models:
(Press ctrl + F to find model number below.)
Various. (Call 734-326-3900 with your model and serial number for more information.)
