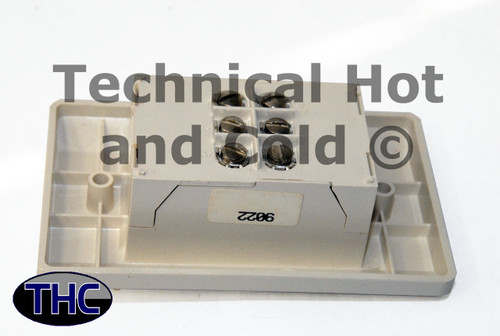

System Sensor RTS451KEY Remote Test Station - Key Activated

System Sensor RTS451KEY Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # RTS151KEY

Note: Note(*): Not used with Model 6424 Projected Beam Smoke Detector.

Includes:

• (1) - Remote Test Station (Part Numbers: RTS451KEY)
• (1) - #4 Screw for Mounting Bracket
• (1) - Test Coil*
• (1) - Screw Pack (Qty: 2 Mounting Screws)
• (2) - Keys
• (1) - Jumper with Spade Lugs*
• (1) - Test Coil Mounting Bracket*

Specifications

• Dimensions: 4.6" H x 2.75" W x 1.8" D
• Weight: 0.22 Lbs.
• Power Requirements:
• Power LED (Green): 14 - 35 VDC, 12 mA Max.
• Alarm LEN (Red): 2.8 - 32 VDC, 10 mA Max.
• Test Coil*: 15.5 - 32 VDC, 95 mA Max.
• Total Current: 105 mA Max.
• Alarm Response Time: 40 Seconds Max.
• Temperature: -10 to 60 (Degree Celcius) (14 to 140 Degree Fahrenheit)
• Humidity: 95% Relative Humidity, Noncondensing

Replaces Old System Sensor Part Numbers

• There are no older part numbers.

Other Part Numbers

RTS451KEY(A) Remote Test Station, System Sensor, S2522, 70G0, Smoke Automatic Fire Detector Accessory, D440-03-00, OV3AO.AY, L00-693-13, Maple Chase, Uni-Line

Fits Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
