Schimpke 6204366 Temperature Controller (NON-PROGRAMMED)

Schimpke 6204366 Replacement Part

Note: Model and serial number of chiller is required with purchase to be programmed before shipping.

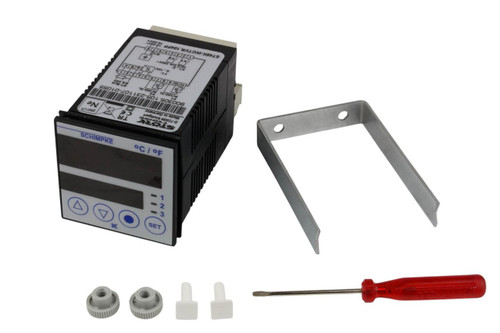

Includes:

• (1) - Temperature Controller (D70569)
• (1) - Mounting Bracket (-)
• (2) - Plastic Screws (-)
• (2) - Plastic Nuts (-)
• (1) - Small Screwdriver (-)

Specifications

• Manufacturer: Stork Tronic
• Manufacturer Part #: ST48K-WCTVR.104FP
• Height: 2"
• Length: 3-3/4"
• Width: 1-7/8"
• Power: 12-24V AC / 16-36V DC
• ST-Bus: Yes
• Switching Inputs: None
• Switching Exits: 2
• FEATURES:
• The PID Differential Temperature Controller with Two 3-Digit LED Seven Segment Displays, 4 Keys and 3 Relays is Variably Applicable Due to Its Freely Programmable General Functions.
• The Relay Contact K1 Directly Affects the Main Setpoint, Formed by Reference Variable and the Given Offset Temperature.
• Contact K2 Affects the Secondary Setpoint Which is Formed By the Main Setpoint Via Overlap or Which Alternatively Can Be Freely Defined.
• Temperature Display in F°/C°

Note: Model and serial number of chiller is required with purchase to be programmed before shipping.

Replaces Old Schimpke Part Numbers

• There are no older part numbers.

Other Part Numbers

Storktronic, Stork, ST48K-WCTVR.104FP, 6204366, Temp Controller, D-70569, 900305.105, 900305.105-110713-00091, 12-24V, 90030510523110701055, 900305.105,

Fits Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
