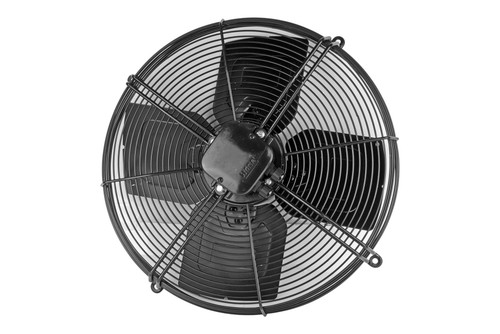

Schimpke 6110570 Axial Condenser Fan

Schimpke 6110570 Replacement Part

CALL (734) 326-3900 or SEND MESSAGE TO PARTS@TECHNICALHOTANDCOLD.COM FOR PRICE!

Includes:

• (1) - Axial Condenser Fan (6110570)
• (1) - Operating Instructions (00296702-GB)

Specifications

• Manufacturer: Ziehl-Abegg
• Model # FB050-VDK.4I.V4P
• Impeller Diameter: 7 1/2"
• Poles: 4
• Phase: 3 with Alternating Current
• Rotation: Blowing Over Stator
• # of Impeller Blades: 4
• Blade Material: Aluminum
• Thermal Class: THCL155
• Protection Class: IP54
• Efficiency (nstatA): 34.6%
• Efficiency (Actual): 42.4%
• 3~PHASE, 50 HZ
• Voltage: 500
• Input Power( /Y): 0.69/0.44kW
• Amperage( /Y): 1.25/0.62
• RPM( /Y): 1310/1060
• 3~PHASE, 60 HZ
• Voltage: 575
• Input Power( /Y): 1.15/0.68kW
• Amperage( /Y): 1.50/0.84
• RPM( /Y): 1500/1140

Replaces Old Schimpke Part Numbers

• There are no older part numbers.

Other Part Numbers

FB050-VDK.4I.V4P, 84145925, 168190, 31838027, IEC60034-1, EAC, CE

Fits Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
