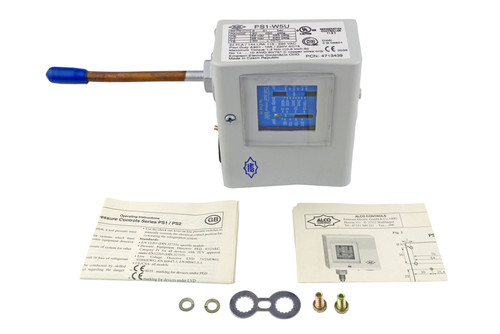

Schimpke 5000878 Pressure Control

Schimpke 5000878 Replacement Part

Includes:

• (1) - Pressure Control (5000878)
• (1) - Instructions (PS3_O1_ML_R13_0716000)

Specifications

• Manufacturer: Alco Controls
• Manufacturer Part #: PS3-W1S
• Voltage: 120/240
• Amps: 6
• LRA: 36
• Fixed Setting Cut-Out: 0.3 bar / 4.4 psig
• Fixed Setting Cut-In: 1.8 bar / 26 psig
• Reset: Auto
• Maximum Temperature Ambient: 70 Degree Celsius
• Maximum Temperature Pressure Connection: 70 Degree Celsius
• Leakage Test Pressure: 30 bar / 435
• 7/16" -20 UNF Female Thread with Schrader Opener
• PS: 27 bar / 390 psig
• PT: 30 bar / 435 psig

Country of Origin: Czech Republic

Replaces Old Schimpke Part Numbers

• There are no older part numbers.

Other Part Numbers

Emerson Climate Technologies, AB 109858, 5000878, PS3-W1S, PCN 0714761, Pressure Limiter, AB28, K1546, 0035, ALCO 0714761, Alco Controls, PSL (EN12263), 5A1676400089K2150, 861 161/0714785, 5C7869400043

Fits Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
