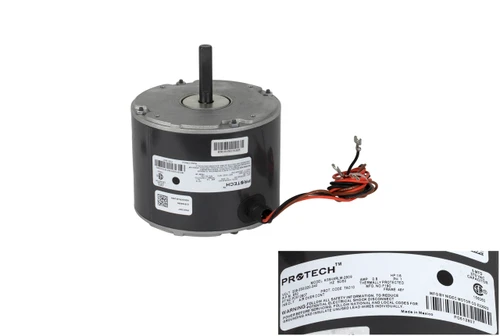

Rheem Ruud PD512807 Replacement Part
Includes:
- (1) - Fan Motor (PD512807)
Specifications
- Model # K55HXRLM-2909
- Horsepower: 1/6
- Voltage: 208-230/220-240
- Hertz: 60/50
- Amperage: 0.80
- Phase: Single
- RPM: 850
- Speeds: 1
- Frame: 48Y
- Insulation Class: F
- Motor Cooling/Duty: Air Over Continuous
- Bearings: Self-Aligning Ball
- Capacitor Needed: 5 MFD @ 370 VAC
- Rotation: Counterclockwise Lead End
- Shaft Type: Single Side Flat Shaft
- Shaft Diameter: 1/2"
- Shaft Length: 2 1/8"
Country of Origin: Mexico
Note: Always check the fan blade on your fan assembly. Bad or unbalanced fan blades can cause premature motor failure due to vibration. If you are not sure what fan blade fits your fan assembly, call us at 734-326-3900.
🚀 To prevent premature motor failure, it is highly recommended you change your capacitor along with your motor. Capacitors out of tolerance can cause motors to overheat and prematurely fail. If you are unsure of what capacitor is required for your unit, please call us at 734-326-3900.
Replaces Old Rheem Ruud Part Numbers
- 51-102008-02
- 51-101774-02
- 51-101774-52
- 51-102500-03
Other Part Numbers
Condenser Motor - 1/6 hp 208-230/1/50-60 (825 rpm/1 speed), PD512807, E19184896, K55XHRLM-2909, 156060, E22922, Nidec Motor Corporation, PROTECH, Rheem, Ruud, K055RLM2909011J
Fits Models:
(Press ctrl + F to find model number below.)
RGEA16, RRRL-B, RRRL-C, UAND, UANL, UANL, UAPL, VPGL, UPNE, UPNL, UPPC, UPPL, 13ACA, 13ACN, 13AJA, 13AJL, 13AJM, 13AJN, 13PJA, 13PJL, 13PJP, 14AJA, 14AJL, 14AJM, 14PJL, 14PJM, 15PJL, 16AJL, RA14, RA16, RP14, RP14, RA14, RA14, RA14, RA16, RP13, RP14, VA14, VAGL, VAGN,
