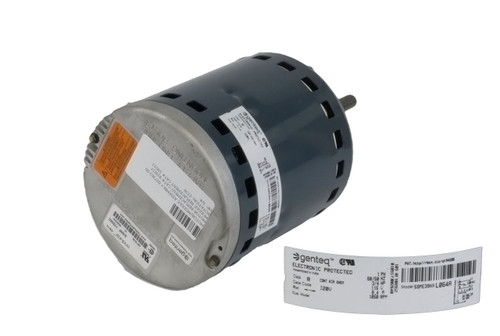

Lennox 81W37 ECM X-13 Blower Motor Assembly

Lennox 81W37 Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 23V79

Includes:

• (1) - ECM X-13 Blower Motor Assembly (81W37)

Specifications

• Horsepower: 3/4
• Voltage: 115
• Hertz: 50/60
• Number of Phases: 1
• RPM: 1050
• Rotation: Reversible
• Shaft Diameter: 1/2"
• Shaft Length: 4"
• Length: 6 1/2"
• Outer Diameter: 5 1/2"
• Electronically Protected
• Insulation Class B
• Motor Cooling: Continuous Air Over

Country of Origin: India

Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.

🚀 Note: The most common cause of ECM motor failure is poorly conditioned power. To protect sensitive ECM modules against transient voltage, power surges, lightning, and voltage spikes, it is highly recommended that you install a Zebra X13PR inline ECM protector.

Replaces Old Lennox Part Numbers

• 607421-06

Replaces Old Allied, Armstrong, Concord, Ducane Part Numbers:

• 607421-06

Other Part Numbers

10-9rf108952, 0109177002640, motor

Fits Models:

(Press ctrl + F to find model number below.)

EL195DF090XE48C-01, EL195DF090XE48C-02, EL195DF090XE48C-03, EL195DF090XE48C-04, EL195DF090XE48C-05, EL195DF090XE48C-06, EL195UH090XE48C-01, EL195UH090XE48C-02, EL195UH090XE48C-03, EL195UH090XE48C-04, EL195UH090XE48C-05, EL195UH090XE48C-06, EL296DF090XE48C-01, EL296DF090XE48C-02, EL296DF090XE48C-03, EL296UH090XE48C-01, EL296UH090XE48C-02, EL296UH090XE48C-03

Fits Allied, Armstrong, Concord, Ducane, Magic Chef, and Magic-Pak Models:

(Press ctrl + F to find model number.)
