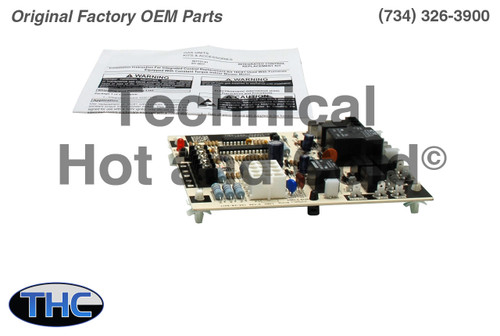

Lennox 63W26 Ignition Control Board

(No reviews yet) Write a Review
$419.88
Brand
Lennox
SKU:
63W26
Condition:
New
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
Brand
Lennox
SKU:
63W26
Condition:
New
Weight:
2.00 LBS

Have Questions? Ask a Tech!

  • Genuine OEM Parts

    Offering genuine parts for your specific brand.

  • In-House HVAC Techs

    We help you diagnose, find, and install the part.

  • 1-Year Warranty & Returns

    Failed, or didn't need it? No hassle returns.

  • Expedited Delivery

    Offering competitively-priced expedited shipping.

Lennox 63W26 Replacement Part

Includes:

  • (1) - Ignition Control Board (63W26)

Specifications

  • Line Voltage: Line 120V (97-132 VAC), 50/60 Hz
  • Low Voltage: Line 24V (18-30 VAC), 50/60 Hz
  • Current Draw: 0.5A Input Current, Plus Valve Load @ 24VAC
  • Igniter Current: 1.0A Resistive @ 95 VAC Output
  • Thermostat Anticipator Setting: (Stage 1 only) 100mA
  • Prepurge: 5 Seconds
  • HSI Warmup: 20 Seconds
  • Trial for Ignition: 4 Seconds
  • Postpurge: 5 Seconds
  • Interpurge: 15 Seconds
  • Auto Restart Delay: 60 Minutes (After Soft Lockout)
  • Ignition Trials: Five, Four Retries If Flame Is Not Sensed On The First Trial
  • Second Stage Recognition Delay: 30 Seconds (Only On First Call For High Fire On A Call For Heat)
  • Second Stage ON Delay: 10 Or 15 Minutes (Depending On Dip Switch S1 Setting For Switch 2) When Used With A Single-Stage Thermostat
  • Second Stage Fan OFF Delay: 30 Seconds
  • Flame Failure Response Time: 2 Seconds Maximum @ 1A
  • LEDs: Two LEDs Provide The Following: A Red LED Provides System Status And Faults, A Green LED Shows Information About The EnviraCOM Traffic
  • Fan Delays:
  • Heat Fan ON Delay: 45 Seconds
  • Heat Fan OFF Delay: 60, 90, 120 or 180 Seconds (Depending On Dip Switch S1 Settings For Switches 3 And 4)
  • Cool Fan ON Delay: 2 Seconds
  • Cool Fan OFF Delay: 2 Or 45 Seconds (Depending On Dip Switch S1 Setting For Switch 5)
  • Gas Control: Any VAC Redundant, Direct Ignition Gas Control Rated At 1.5A Or Less. Honeywell VR8205 Recommended
  • Cooling Contactor: Any 24 Vac Contactor Rated At 1.0A Or Less
  • Induced Draft Blower: 2.2 FLA/25LRA Maximum @ 120VAC
  • Circulator Load: 14.5FLA/25LRA Maximum @ 120VAC
  • Line Voltage Humidifier: 1A Resistive Load Maximum @ 120VAC
  • Low Voltage Humidifier: 1A Resistive Load Maximum @ 24VAC
  • Electronic Air Cleaner: 1A Resistive Load Maximum @ 120VAC
  • Operating Temperature:-40 Degree F to 175 Degree F
  • Relative Humidity: 0% to 95% Condensing
  • Board Dimensions: 8 3/16" x 4 3/16"

Replaces Old Lennox Part Numbers

  • 23W25
  • 100869-02
  • 100869-01

Replaces Old Allied, Armstrong, Concord, Ducane Part Numbers:

  • There are no older part numbers.

Other Part Numbers

Honeywell, ANSI Z21.20, 5W240J, TAI-OHM, 100869-03, S9220E1018, 1505J17603, 15J31358, Lennox , Surelight, TSTAT HEAT STAGES, 2nd STAGE DELAY, HEAT OFF DELAY, COOL OFF DELAY, NEUTRALS, S9220E1018/U

Fits Models:

(Press ctrl + F to find model number below.)

G60DF-36A-070X-07-07, G60DF-36A-070X-09-09, G60DF-36A-070X-10-10, G60DF-36B-090-07-07, G60DF-36B-090-09-09, G60DF-36B-090-10-10, G60DF-48C-110-07-07, G60DF-48C-110-09-09, G60DF-48C-110-10-10, G60UH-24A-070-07-07, G60UH-24A-070-09-09, G60UH-24A-070-10-10, G60UH-36A-070-07-07, G60UH-36A-070-09-09, G60UH-36A-070-10-10, G60UH-36A-070X-07-07, G60UH-36A-070X-09-09, G60UH-36A-070X-10-10, G60UH-36B-090-07-07, G60UH-36B-090-09-09, G60UH-36B-090-10-10, G60UH-36C-110-07-07, G60UH-36C-110-09-09, G60UH-36C-110-10-10, G60UH-48B-090-07-07, G60UH-48B-090-09-09, G60UH-48B-090-10-10, G60UH-48B-090X-07-07, G60UH-48B-090X-09-09, G60UH-48B-090X-10-10, G60UH-48C-110-07-07, G60UH-48C-110-09-09, G60UH-48C-110-10-10, G60UH-60C-110X-07-07, G60UH-60C-110X-08-08, G60UH-60C-110X-09-09, G60UH-60C-110X-10-10, G60UH-60D-135-07-07, G60UH-60D-135-08-08, G60UH-60D-135-09-09, G60UH-60D-135-10-10, G61MP-36B-045-07, G61MP-36B-045-09, G61MP-36B-070-07, G61MP-36B-070-09, G61MP-36B-071-07, G61MP-36B-071-09, G61MP-48C-090-07, G61MP-48C-090-08, G61MP-48C-090-09, G61MP-48C-110-07, G61MP-48C-110-08, G61MP-48C-110-09, G61MP-60C-090-07, G61MP-60C-090-08, G61MP-60C-090-09, G61MP-60C-091-08, G61MP-60C-091-09, G61MP-60C-110-07, G61MP-60C-110-08, G61MP-60C-110-09, G61MP-60C-111-08, G61MP-60C-111-09, G61MP-60D-135-07, G61MP-60D-135-08, G61MP-60D-135-09

Fits Allied, Armstrong, Concord, Ducane, Magic Chef, and Magic-Pak Models:

(Press ctrl + F to find model number.)

Various. (Call 734-326-3900 with your model and serial number for more information.)

Technical Hot & Cold honors all manufacturer warranties and offers a 1-year warranty on non-maintenance items.
