Lennox 13P95 Replacement Part
Note: Going from 15P38 to 13P95 you will lose the electric heat terminals centered directly under the dial. The heat terminal connections are used to start to fan early. Not having this feature, you will lose efficiency on start up. The new replacement will work, but you will not connect the 2 wires. Take the 2 wires that now have no connection point and wire nut them off individually.

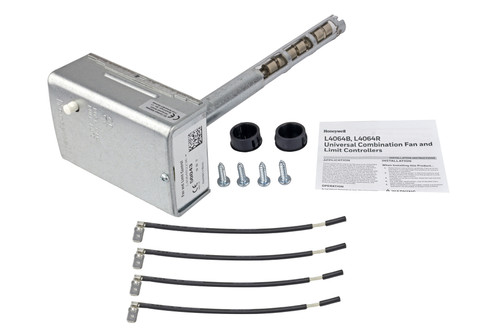

Includes:
- (1) - Fan and Limit Control
- (4) - 7/8" Screws (-)
- (4) - 5-3/8" Wire Leads (E204798)
- (2) - Plastic Grommets (UB-875)
- (1) - Installation Instructions (69-0115-12)
Specifications
- Manufacturer: Honeywell
- Manufacturer Part #: L4064B2236
- Adjustable Fan Differential With Manual Fan Switch
- Insert Length: 8"
- Diameter Of Insert: 3/4"
- Temperature Range: 100-250°F
- Material: Steel
- Length: 10"
- Width: 3"
Country of Origin: Mexico
Replaces Old Lennox Part Numbers
- 74H67
- 69H17
- 37156
- 62C17
- 74H68
- 74B33
- 67F8201
- P-8-3886
- 74H6801
- 74H6701
- 69H1701
- 62C1701
- 13P9501
Replaces Old Allied, Armstrong, Concord, Ducane Part Numbers:
- 67F8201
- 13P9501
Other Part Numbers
Honeywell, L4064B2236, Combination Fan and Limit Switch, 13P95, 95119, 15 3322n, 50079372-003, 0 852670 002156, HEYCO, UB-875, E204798, Germany, 50043, 19 02 12, 0085 18,
Fits Models:
(Press ctrl + F to find model number below.)
78RGF4-125-1, 78RGF4-125-2, 78RGF5-125-1, 78RGF5-125-2, G10-110-1, G10-110V-1, G10-82-1, G11-137-2, G11D2-82-1, G11D2-82-2, G11E-137-1, G11E-137-2, G11E-137-3, G11E-137-4, G11Q2-82-1, G11Q2-82-2, G11Q3-137-2, G11Q3-82-1, G11Q3-82-2, G11Q3E-137-1, G11Q3E-137-2, G11Q3E-137-3, G11Q3E-137-4, G11Q3E-137V-1, G11Q3E-137V-2, G11Q3E-137V-3, G11Q3E-137V-4, G11Q4-137-2, G11Q4E-137-1, G11Q4E-137-2, G11Q4E-137-3, G11Q4E-137-4, G11Q4E-137V-1, G11Q4E-137V-2, G11Q4E-137V-3, G11Q4E-137V-4, G11Q5-137-2, G11Q5-137V-2, G11Q5E-137-1, G11Q5E-137-2, G11Q5E-137-3, G11Q5E-137-4, G11Q5E-137V-1, G11Q5E-137V-2, G11Q5E-137V-3, G11Q5E-137V-4, G12D2E-82-1, G12D2E-82-2, G12D2E-82-3, G12D2E-82-4, G12E-82-1, G12E-82-2, G12E-82-3, G12E-82-4, G12Q3-82-2, G12Q3-82-3, G12Q3E-82-1, G12Q3E-82-2, G12Q3E-82-3, G12Q3E-82-4, G17RQ4/5-125-1, G17RQ4/5-125-2, G17RQ4/5-125-3, G20R(Q3,Q4/5)(E,X)-125(H)-1, G20R(Q3,Q4/5)(E,X)-125(H)-2, G20R(Q3,Q4/5)(E,X)-125(H)-3, G20R(Q3,Q4/5)(E,X)-125(H)-4, G20R(Q3,Q4/5)(E,X)-125(H)-5, G20R(Q3,Q4/5)(E,X)-125(H)-6, G20R(Q3,Q4/5)(E,X)-125(H)-7, G20R(Q3,Q4/5)(E,X)-125(H)-8, G20RQ4/5E-150(H)-1, G20RQ4/5E-150(H)-2, G20RQ4/5E-150(H)-3, G20RQ4/5E-150(H)-4, G20RQ4/5E-150(H)-5, G20RQ4/5E-150(H)-6, G20RQ4/5E-150(H)-7, G20RQ4/5E-150(H)-8, G8-137-0US, G8-137-1AC, G8-137-1C, G8-137-1US, G8-137-2US, G8-137-3US, G8-137-4US, G8-137-5US, G9-137-1, GS11D-60-1, GS11DE-60-0, GS11DE-60-2, GS11DE-60-3, GS11DE-60-4, GS11DE-60-5, GS11E-60-2, GS11E-60-3, GS11Q3-60-1, GS11Q3E-60-0, GS11Q3E-60-2, GS11Q3E-60-3, GS11Q3E-60-4, GS11Q3E-60-5, GS12Q3-60-1, GS12Q3-80-1, GS12Q3X-60-1, GS12Q3X-80-1, GSR21CV5-100-1-1, GSR21CV5-100-2-2, GSR21CV5-100-3-3, GSR21CV5-100-4-4, GSR21CV5-100-5-5, GSR21CV5-80-1-1, GSR21CV5-80-2-2, GSR21CV5-80-3-3, GSR21CV5-80-4-4, GSR21CV5-80-5-5, GSR21Q3-50-1-1, GSR21Q3-50-10-10
Fits Allied, Armstrong, Concord, Ducane, Magic Chef, and Magic-Pak Models:
(Press ctrl + F to find model number.)
GS11D-60-1, GS11DE-60-0, GS11DE-60-2, GS11DE-60-3, GS11DE-60-4, GS11DE-60-5, GS11E-60-2, GS11E-60-3, GS11Q3-60-1, GS11Q3E-60-0, GS11Q3E-60-2, GS11Q3E-60-3, GS11Q3E-60-4, GS11Q3E-60-5, GS12Q3-60-1, GS12Q3-80-1, GS12Q3X-60-1, GS12Q3X-80-1
- SKU:
- 13P95
- Condition:
- New
- Weight:
- 9.00 LBS
- Shipping:
- Calculated at Checkout
