Lahntechnik Duotemp 111269 Temperature Controller (NON-PROGRAMMED)

Lahntechnik Duotemp 111269 Replacement Part

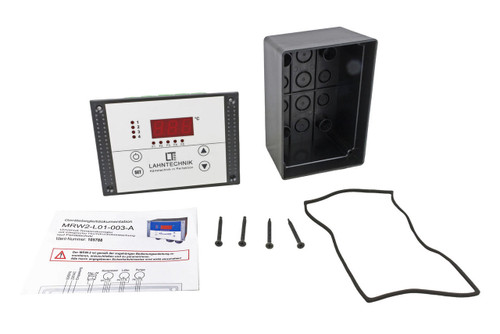

Includes:

• (1) - Temperature Controller (111269)
• (1) - Mounting Bracket (-)
• (4) - Mounting Screw (-)
• (4) - Lock Washer (-)
• (1) - Gasket (-)

Specifications

• Manufacturer: Welba
• Model # MRF-2-L01-001-A
• Operating Voltage (AC): 230
• Hertz: 50/60
• Display 3-Digit LED Display: 13 mm Digit Height
• Display Range: -99 to 999
• Number of Sensor Inputs: 2 or 3
• Suitable Sensors: KTY 81-110, KTY 81-210, PT 100 (2 or 3 Wire), PT 1000
• Measuring Range:
• - KTY 81-110 -50° to 150°C
• - KTY 81-210 -50° to 150°C
• - PT 100 - 2 Conductors -99° to 400°C
• - PT 100 - 3 Conductors -99° to 400°C
• - PT 1000 - 99° to 400°C
• Digital Inputs Up to 5 (via Optocouplers)
• Temperature Alarms 2 (Independent of Each Other)
• Control Behavior Two-Point / Three-Point Controller
• PID (Continuous or Clocked)
• Hysteresis: 0.1 K to 99.9 K Freely Adjustable
• Casing
• Front Measurement: 106 x 68 mm
• Panel Cut-Out 87 x 56 mm

Country of Origin: Germany

Replaces Old Lahntechnik Duotemp Part Numbers

• There are no older part numbers.

Other Part Numbers

MRF-2-L01-001-A, 111269, Temp. Control, Lahntechnik, duotemp

Fits Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
