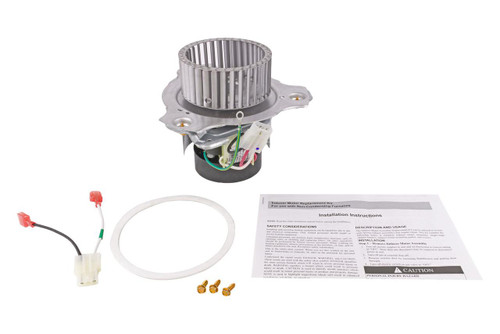

ICP 1188170 Draft Inducer Motor Assembly Kit

ICP 1188170 Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 1191197

Includes:

• (1) - Draft Inducer Motor Assembly (1188170)
• (1) - 2-Stage to Single Stage Adapter Harness (PSC ONLY EXCEPT 140,000 Input (-)
• (1) - Inlet Choke Plate (26,000 BTU ONLY) (1188169)
• (1) - Inlet Choke Plate (-)
• (1) - Inducer Outlet Restrictor (40,000 Input Only) (-)
• (5) - 1/2" #8 Hex Head Screw (-)
• (2) - 3/8" #8 Hex Head Thread-Cutting Screw (-)
• (1) - Installation Instructions (443 06 5603 01)

Specifications

• Motor Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
• Model # Y4L241A59
• Voltage: 115
• Hertz: 60
• Full Load Amperage: 0.266
• Watts: 9.2
• Phase: Single
• RPM: 2730
• Speeds: 2
• Thermally Protected
• Motor Duty/Cooling: Continuous Air Over
• Insulation Class: B
• Rotation: Clockwise Lead End
• Capacitor (Included): 5 MFD @ 250 VAC

Country of Origin: USA

Replaces Old ICP Part Numbers

• 1184400
• 1184409
• 1184543
• 1185553
• 1185586

Other Part Numbers

1188170, INDUCER MOTOR, Inducer HSG Kit, 10/16, fast parts division, ICP, OEM PARTS, fast HVAC PARTS, HC27CQ101, 20160630, Y4L241A59, Broad-Ocean, N5004, N1607130800142, 101916, 084514

Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:

(Press ctrl + F to find model number below.)

F9MXE0261410A2, G9MXE0261410A2, N9MSE0261408A2,
