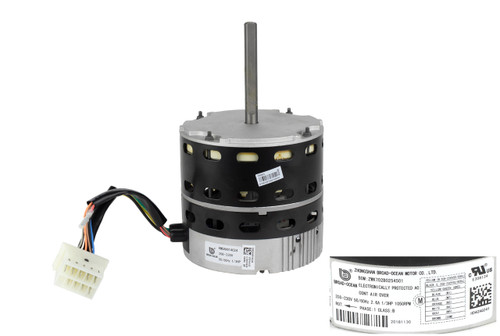

ICP 1186448 ECM X-13 Blower Motor Assembly

ICP 1186448 Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 1191609

Includes:

• (1) - ECM Blower Motor Assembly (1186448)

Specifications

• Manufacturer: Zhongshan Broad-Ocean Motor Co.,LTD.
• Model # ZWK702B0254501
• Horsepower: 1/3
• Voltage: 208-230
• Hertz: 50/60
• Amperage: 2.60
• Phase: Single
• RPM: 1050
• Frame: 48
• Electronically Protected
• Motor Duty/Cooling: Continuous Air Over
• Insulation Class: B
• Bearings: Ball
• Mounting: Belly Band
• Rotation: Counterclockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2"
• Shaft Length: 3 7/8"

Country of Origin: China

Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.

🚀 Note: The most common cause of ECM motor failure is poorly conditioned power. To protect sensitive ECM modules against transient voltage, power surges, lightning, and voltage spikes, it is highly recommended that you install a Zebra X13PR inline ECM protector.

Replaces Old ICP Part Numbers

• 1179753
• 1184627
• 1185022

Other Part Numbers

1186448, ICP PARTS MOTOR, BLOWER ECM, 1/3HP, OEM PARTS, fast HVAC PARTS, Broad-Ocean, E308134, D1811231000573, 20181120, HD42AQ241

Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
