ICP 1186437 Replacement Part
Includes:

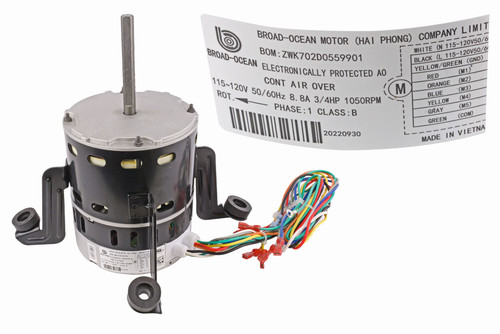

- (1) - ECM 5.0 Eon Blower Motor Assembly (1186437)
Specifications
- Manufacturer: Zhongshan Broad-Ocean Motor Co.
- Model # ZWK702D0559901
- Horsepower: 3/4
- Voltage: 115-120
- Hertz: 50/60
- Amperage: 8.8
- Phase: Single
- RPM: 1050
- Frame: 48
- Electronically Protected
- Motor Duty/Cooling: Continuous Air Over
- Insulation Class: B
- Bearing: Ball
- Mounting: Arm & Grommet
- Number of Mounts: 4
- Rotation: Counterclockwise Lead End
- Shaft Type: Single Side Flat Shaft
- Shaft Diameter: 1/2"
- Shaft Length: 3 15/16"
Country of Origin: Vietnam
Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.
🚀 Note: The most common cause of ECM motor failure is poorly conditioned power. To protect sensitive ECM modules against transient voltage, power surges, lightning, and voltage spikes, it is highly recommended that you install a Zebra VZPRO inline ECM protector.
Replaces Old ICP Part Numbers
- 1184513
- 1185966
Other Part Numbers
1186437, 20180610, Broad-Ocean, Zhongshan Broad-Ocean Motor Co., D5003, HD46MQ134, E308134, OEM PARTS, fast HVAC PARTS, 0 08 23960 36726 2, E308134, V5301B, V2212168400013
Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:
(Press ctrl + F to find model number below.)
Various. (Call 734-326-3900 with your model and serial number for more information.)
