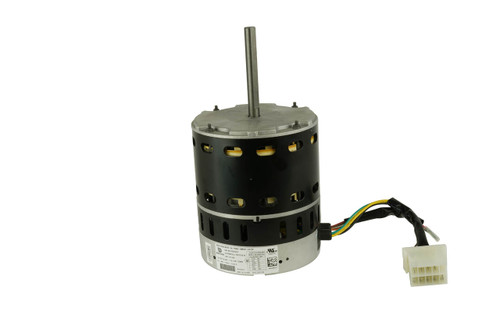

ICP 1185023 ECM Blower Motor Assembly

ICP 1185023 Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 1190584

Includes:

• (1) - ECM Blower Motor Assembly (1185023)

Specifications

• Manufacturer: Zhongshan Broad-Ocean Motor Co.,LTD.
• Model # ZWK702B0250601
• Horsepower: 1/3
• Voltage: 208-230
• Hertz: 50/60
• Amperage: 2.6
• Phase: Single
• RPM: 1050
• Frame: 48
• Electronically Protected
• Motor Cooling: Continuous Air Over
• Insulation Class: B
• Bearings: Ball
• Mounting: Belly Band
• Rotation: Counterclockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2"
• Shaft Length: 3 7/8"

Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.

Replaces Old ICP Part Numbers

• 1179680

Other Part Numbers

HD42AQ234, Fast HVAC PARTS, OEM PARTS, Broad-Ocean, Cont Air Over, 20160520, D5003, D160626893500105, E308134, D5001, D1606260900103, KMSAH014C01-V006A11B, E-160621-3831-8480

Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:

(Press ctrl + F to find model number below.)

FEM4P3000AL2, FEM4P3000AL3, FEM4X3000B1, FEM4X3000BL1, FEM4X3000BT1, WAHL304B1, WAHM304B1, WAHT304B1, WAPL304A2, WAPL304A3, WAPM304A2, WAPT304A2
