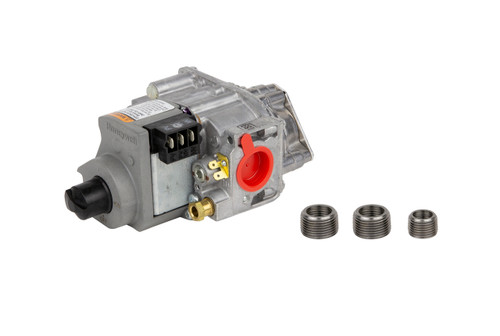

ICP 1175705 Replacement Part
NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 1190417
Includes:
- (1) - Gas Valve (1175705)
- (1) - Natural to LP Gas Conversion Kit (-)
- (1) - Installation Instructions (69-2253-06)
Specifications
- Manufacturer: Honeywell
- Model # VR8215S1503
- Ignition Type: Dual Direct Spark or Hot Surface
- Application: Single-Stage
- Gas Type: Natural Gas or LP (Conversion Kit Included)
- Opening Speed: Standard
- Max Capacity @ 1" Pressure Drop: 150,000 BTU/hr
- Coil Voltage: 24
- Hertz: 50/60
- Amperage: 0.56
- Pressure Regulator Factory Set To: 3.2" W.C.
- Pressure Regulator Adjustable Range: 2.5-3.5" W.C.
- Max Pressure: 1/2 PSI
- Inlet/Outlet Size: 1/2" NPT
- Pressure Tap Size: 1/8" NPT w/ Plug
- Temperature Range: -40 to 175° F
- Electrical Connection: 1/4" QC Male Terminals
- Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat; Closes When Call for Heat Ends.
- Diaphragm Operated Second Automatic Valve Opens Under Control of the Regulator; Closes if Gas or Power Supply is Interrupted.
Replaces Old ICP Part Numbers
- There are no older part numbers.
Other Part Numbers
HVAC Parts, FAST OEM PARTS, International Comfort Products, 1175705, Valve Gas, Honeywell, VR8205S2437
Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:
(Press ctrl + F to find model number below.)
C8DNL050B12B2, C8DNL075B12B2, C8DNL075F16B2, C8DNL100F14B2, C8DNL100L20B2, C8DNL125L20B2, C8MPL050B12B2, C8MPL075B12B2, C8MPL075F16B2, C8MPL100F20B2, C8MPL100J20B2, C8MPL125J20B2, C8MPN050B12B2, C8MPN075B12B2, C8MPN075F16B2, C8MPN100F14B2, C8MPN100F20B2, C8MPN100J20B2, C8MPN125J20B2, C8MPN150J20B2, C9MPD050F12C2, C9MPD075F12C2, C9MPD080J16C2, C9MPD100J14C2, C9MPD100J20C2, C9MPD125L20C2, H8DNL050B12B2, H8DNL075B12B2, H8DNL075F16B2, H8DNL100F14B2, H8DNL100L20B2, H8DNL125L20B2, H8MPL050B12B2, H8MPL075B12B2, H8MPL075F16B2, H8MPL100F20B2, H8MPL100J20B2, H8MPL125J20B2, H8MPN050B12B2, H8MPN075B12B2, H8MPN075F16B2, H8MPN100F14B2, H8MPN100F20B2, H8MPN100J20B2, H8MPN125J20B2, H8MPN150J20B2, H8UH5050B12C2, H8UH5075B12C2, H8UH5100F14C2, H8UH5125J20C2, H8UH5140J20C2, H9MPD050F12C2, H9MPD075F12C2, H9MPD080J16C2, H9MPD100J14C2, H9MPD100J20C2, H9MPD125L20C2, HL12H3TRC2, HL18H3TRC2, HL25H3TRC2, HL31H4TRC2, HL34H5TRC2, MUF050W3C2, MUF075W3C2, MUF100W3C2, MUF125W5C2, MUF140W5C2, N8MPL050B12B2, N8MPL075B12B2, N8MPL075F16B2, N8MPL100F20B2, N8MPL100J22B2, N8MPL125J20B2, N8MPL125J22B2, N8MPN050B12B2, N8MPN075B12B2, N8MPN075F16B2, N8MPN100F14B2, N8MPN100F20B2, N8MPN100J22B2, N8MPN125J20B2, N8MPN125J22B2, N9MP1040B08C2, N9MP1050B12C2, N9MP1060B12C2, N9MP1075B12C2, N9MP1080F16C2, N9MP1100F14C2, N9MP1100J20C2, N9MP1125J20C2, N9MP2050B12C2, N9MP2075B12C2, N9MP2080F16C2, N9MP2100F14C2, N9MP2100J20C2, N9MP2125J20C2, N9MPD040F08A2, N9MPD050F12A2, N9MPD060F12A2, N9MPD075F12A2, N9MPD080J16A2, N9MPD100J14A2, N9MPD100J20A2, N9MPD125L20A2, T8DNL050B12B2, T8DNL075B12B2, T8DNL075F16B2, T8DNL100F14B2, T8DNL100L20B2, T8DNL125L20B2, T8MPL050B12B2, T8MPL075B12B2, T8MPL075F16B2, T8MPL100F20B2, T8MPL100J20B2, T8MPL125J20B2, T8MPN050B12B2, T8MPN075B12B2, T8MPN075F16B2, T8MPN100F14B2, T8MPN100F20B2, T8MPN100J20B2, T8MPN125J20B2, T8MPN150J20B2, T9MPD050F12C2, T9MPD075F12C2,
- SKU:
- 1175705
- Condition:
- New
- Weight:
- 5.00 LBS
- Replaced by Part #:
- 1190417
