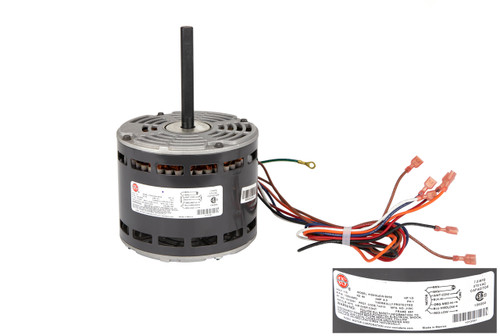

ICP 1013341 Replacement Part
Includes:
- (1) - Blower Motor (1013341)
Specifications
- Manufacturer: US Motors
- Model # K55HZJEW-9056
- Voltage: 115
- Hertz: 60
- Amperage: 8.0
- Phase: Single
- RPM: 1050
- Speeds: 4
- Frame: 48Y
- Thermally Protected
- Insulation Class: B
- Motor Cooling/Duty: Air Over Continuous
- Capacitor Needed: 7.5 MFD @ 370 VAC
- Rotation: Counterclockwise Lead End
- Shaft Type: Single Side Flat Shaft
- Shaft Diameter: 1/2"
- Shaft Length: 4"
Country of Origin: Mexico
Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.
Replaces Old ICP Part Numbers
- 1009053
- 1012513
- 1172487
- 603688
- 604007
- 609277
- 609887
- 84748
- 99728
Other Part Numbers
K055JEW9056011J, 00823960024141, 156060, 1013341, 156060, 0444257100473, BLR MTR, J18C, fast HVAC PARTS, Fast Parts Division, International Comfort Products, Nidec Motor Corporation
Fits ICP, Heil, Tempstar, Arcoaire, Comfortmaker, Snyder General, KeepRite and Day & Night Models:
(Press ctrl + F to find model number below.)
C8DNL050B12A1, C8DNL100F14A1, C8MPL075B12A1, C8MPN075B12A1, C8MPN100F14A1, C8MPT100F14A1, C9MPD075F12A1, C9MPD075F12A2, C9MPD075F12A3, C9MPD075F12A4, C9MPD075F12B1, C9MPD100J14A1, C9MPD100J14A2, C9MPD100J14A3, C9MPD100J14A4, C9MPD100J14B1, FBF100F14G1, GDE100F14G1, GDL075N12G1, GNE100F14G1, GNL075N12G1, H8DNL050B12A1, H8DNL100F14A1, H8MPL075B12A1, H8MPN075B12A1, H8MPN100F14A1, H8MPT100F14A1, H9MPD075F12A1, H9MPD075F12A2, H9MPD075F12A3, H9MPD075F12A4, H9MPD075F12B1, H9MPD100J14A1, H9MPD100J14A2, H9MPD100J14A3, H9MPD100J14A4, H9MPD100J14B1, N8MPL075B12A1, N8MPN075B12A1, N8MPN100F14A1, N9MP1075B12A1, N9MP1075B12A2, N9MP1075B12A3, N9MP1075B12A4, N9MP1075B12B1, N9MP1100F14A1, N9MP1100F14A2, N9MP1100F14A3, N9MP1100F14A4, N9MP1100F14B1, N9MP2075B12A1, N9MP2075B12A2, N9MP2075B12A3, N9MP2075B12A4, N9MP2075B12B1, N9MP2100F14A1, N9MP2100F14A2, N9MP2100F14A3, N9MP2100F14A4, N9MP2100F14B1, NDC7075BFG1, NDF100F14G1, NDN3100GFG1, NDN6100GFG1, NTC6100GFG1, NTC7075BFG1, NTG3100GFG1, NTP6075GFG1, NTP6100GFG1, T8DNL050B12A1, T8DNL100F14A1, T8MPL075B12A1, T8MPN075B12A1, T8MPN100F14A1, T8MPT100F14A1, T9MPD075F12A1, T9MPD075F12A2, T9MPD075F12A3, T9MPD075F12A4, T9MPD075F12B1, TNE075F14G1, TNE100F14G1,
