Honeywell S9200U1000 Replacement Part

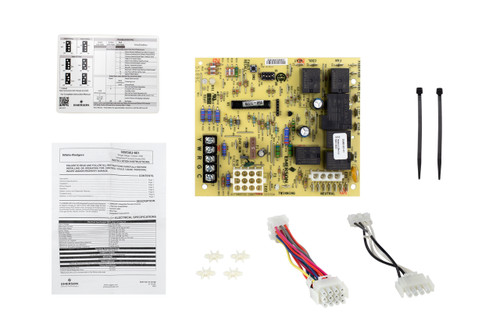

Includes:
- (1) - Integrated Furnace Control Board (S9200U1000)
- (1) - Main Harness - 12-Pin, 3x4 Connector, 7 Inches (-)
- (5) - Wire Connector - 4-Pin, 4x1 Connector, 7 Inches (-)
- (1) - Jumper Wire (-)
- (1) - Installation Instructions (69-2075EF-04)
Specifications
- Manufacturer: Honeywell
- Model # S9200U1000
- Type: Single-Stage Gas Heating & Cooling Applications
- ELECTRICAL RATINGS
- Line Voltage: 120V (97-132 VAC) @ 60 Hertz
- Low Voltage: 24V (19-30 VAC) @ 60 Hertz
- Current Draw: 0.5A Input Current @ 24 VAC, Plus Valve Load @ 24 VAC Plus Cooling Contactor
- Ignitor Current: 5.0A Resistive @ 132 VAC Output
- Thermostat Anticipator Setting: 100 mA (Stage 1 ONLY)
- TIME DELAYS
- Prepurge: 30 Seconds
- HSI Warm-Up: 17/27 or 30/30 Seconds (1st/Next Trial - Depending on DIP Switch S2 Setting)
- Trial for Ignition: 4, 6 or 8 Seconds Depending on DIP Switch S2 Setting
- Postpurge: 15 Seconds
- Inter-Trial Purge: 60 Seconds
- Auto Restart Delay: 60 Minutes (After Soft Lockout)
- Ignition Trials: 3; 2 Retries if Flame is Not Sensed on First Trial
- Flame Failure Response Time: 2 Seconds Maximum @ 1ua
- FAN DELAY
- Heat Fan ON Delay: 30 or 60 Seconds Depending on DIP Switch S1 Setting
- Heat Fan OFF Delay: 60,90.120 or 180 Seconds Depending on DIP Switch S1 Setting
- Cool Fan ON Delay: 5 Seconds
- Cool Fan OFF Delay: 0 or 60 Seconds Depending on DIP Switch S1 Setting
- GAS CONTROL
- Honeywell VR88345M4320 or equivalent RECOMMENDED. Any 24 VAC Redundent, Direct Ignition Gas Control Rated @ 1.5A or Less
- COOLING CONTACTOR
- Any 24 VAC Contactor Rated @ 1.0A or Less
- INDUCED DRAFT BLOWER
- 2.2FLA/3.5RLA Maximum Rated @ 120 VAC
- IGNITOR
- Hot Surface Type, 120VAC
- ELECTRONIC AIR CLEANER
- 1A Resistive Load Maximum @ 120 VAC
- FUSE
- 3.0 Amps, Automotive Style OK
- OPERATING TEMPERATURE
- -40°F to 175°F (-40°C to 79°C)
- RELATIVE HUMIDITY
- 0 to 95 Non-Condensing
- LED'S
- Red LED Provides System Status and Faults
- Amber LED Provides Flame Status Information
- Green LED Provides Information About the Enviracom Traffic
- DIMENSIONS (LxWxH):
- 6 1/8" x 4 1/8" x 1 1/2"
Country of Origin: Mexico
Replaces Old Honeywell Part Numbers
- There are no older part numbers.
Other Part Numbers
S9200U, Honeywell, S9200U1000, Universal Hot Surfaace Ignition Integrated Furnace Control, 1634B19748
Fits Models:
(Press ctrl + F to find model number below.)
Replaces OVER 195 Furnace Control Boards (Contact Technical Hot and Cold @ 734-326-3900 to See if This Item Will Replace Your Board)
