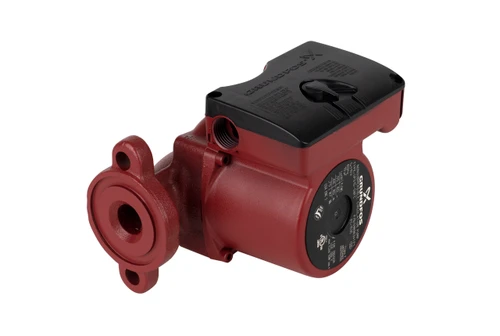

Grundfos UPS15-58FC Circulation Pump

Grundfos UPS15-58FC Replacement Part

Note: For Indoor Use ONLY.

Includes:

• (1) - Circulator Pump (UPS15-58FC)
• (2) - Pipe Connection Gasket (-)
• (2) - Tapping Screw (-)
• (1) - Installation Instructions (-)

Specifications

• Manufacturer: Grundfos
• Model # UPS15-58FC
• Horsepower: 1/25
• Voltage: 115
• Hertz: 60
• Amperage: 0.75
• Watts: 89
• Speeds: 3
• Flow Range: 0 - 17 U.S. GPM
• Head Range: 0 - 19 Feet
• Maximum Fluid Temperature: 230°F (110°C)
• Minimum Fluid Temperature: 36°F (2°C)
• Maximum Pressure: 145 PSI
• Submersible: No
• Insulation Class: F
• Impedance Protected
• Capacitor: 10 MFD @ 180VAC
• Mounting: Vertical or Horizontal Lines (Motor Shaft MUST be Positioned Horizontally
• Body Material: Cast Iron
• Impeller: PES Composite
• (30% Glass Filled)

Country of Origin: USA

Replaces Old Grundfos Part Numbers

• There are no older part numbers.

Other Part Numbers

07A5, JFA, Grundfos, UPS15-58FC, SuperBrute W/CV, 99K4, CA ENC 2

Fits Models:

(Press ctrl + F to find model number below.)

Comparable to Taco007IFC & Taco008IFC and Many More!
