Carrier P257-E5460 Replacement Part
Includes:

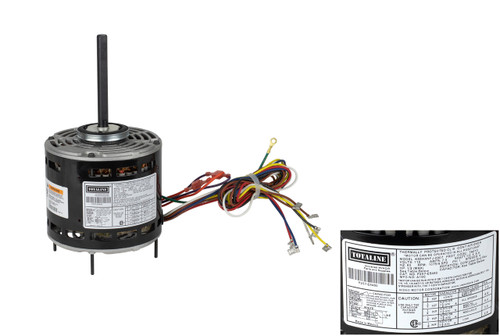

- (1) - Multi-HP Blower Motor (P257-E5460)
- (4) - K-Lock Washer (-)
- (10) - Screw (-)
- (1) - Installation Instructions (B718132790000)
Specifications
- Model # K55HXNFJ-0907
- Horsepower: 1/6, 1/5, 1/4, 1/3, 1/2
- Voltage: 115
- Hertz: 60
- Amperage: 7.30
- RPM: 1075
- Speeds: 4
- Phase: Single
- Frame: 48
- Thermally Protected
- Motor Duty/Cooling: Continuous Air Over
- Insulation Class: B
- Bearings: Sleeve
- Enclosure: Open
- Capacitor Required: Changes Based on Horsepower
- Rotation: Counterclockwise Lead End (Reversible)
- Shaft Type: Single Side Flat Shaft
- Shaft Diameter: 1/2"
- Shaft Length: 4"
Country of Origin: Mexico
Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.
Replaces Old Carrier Part Numbers
- There are no older part numbers.
Other Part Numbers
Nidec Motor Corporation, US motors, Totale, Universal HVAC/R,
Fits Carrier, Bryant, Payne Models:
(Press ctrl + F to find model number below.)
Various. (Call 734-326-3900 with your model and serial number for more information.)
- SKU:
- P257-E5460
- Condition:
- New
- Weight:
- 8.00 LBS
- Shipping:
- Calculated at Checkout
Technical Hot & Cold honors all manufacturer warranties and offers a 1-year warranty on non-maintenance items.
