Carrier OPNDR12ZC 12" i-Vu VVT Zone II Damper

No reviews yet Write a Review
$699.77
Brand
Carrier
SKU:
OPNDR12ZC
Condition:
New
Weight:
47.00 LBS
Shipping:
Calculated at Checkout
  • Technical Hot & Cold BBB Business Review

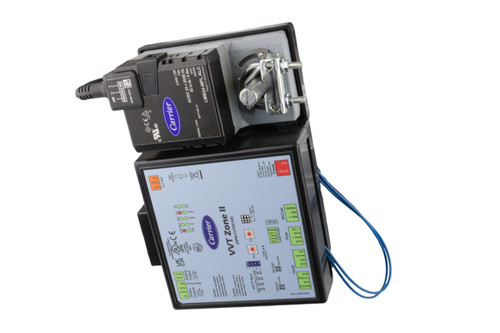

Carrier OPNDR12ZC 12" i-Vu VVT Zone II Damper

$699.77
  • Part Info & Specifications

  • Carrier OPNDR12ZC Replacement Part

    Includes:

    • (1) - 12" i-Vu VVT Zone II Damper (OPNDR12ZC)
    • (1) - Control Board Cover (-)
    • (1) - Screw (-)
    • (1) - O-Ring (-)
    • (1) - Brass Collar (-)

    Specifications

    • 12" i-Vu VVT Zone II Damper
    • Diameter: 12"
    • Length: 24"
    • Inputs, RH/CO2, Gnd, T55, Gnd, Sat, Remote, Gnd
    • Binary Inputs: Fan, Heat 1, Heat 2, Bus
    • Analog Outputs: HWV/Act Gnd
    • Act Net Outputs: Data, Pwr, Gnd
    • Rnet Outputs:+12V, Rnet -, Rnet +, Gnd
    • Bacnet Outputs: Net + Net -, Shield
    • Power Inputs:24VAC, Gnd
    • Local Access: Sense, +12V, Rnet -, Rnet +, Gnd
    • MSTP Baud Rates: 9600, 19.2k, 38.4k, 76.8k
    • Battery: C2032
    • UL Listed E143900, Type: 003000
    • Damper Motor: AC/DC 24v, 50/60Hz, 2.0VA 1.5W, 150s

    Country of Origin: USA

    Replaces Old Carrier Part Numbers

    • There are no older part numbers.

    Other Part Numbers

    i-Vu, MSTP, Bacnet, Carrier Controls, 2V81897, 781897, P65 194, 1POPNDR 12ZC, 4419V97236, United Technologies, NEMA2, IP54, LMB24-MPLALC, 0101 260530, 14064-00035

    Fits Carrier, Bryant, Payne Models:

    (Press ctrl + F to find model number below.)

    Carrier i-Vu Controls Systems
