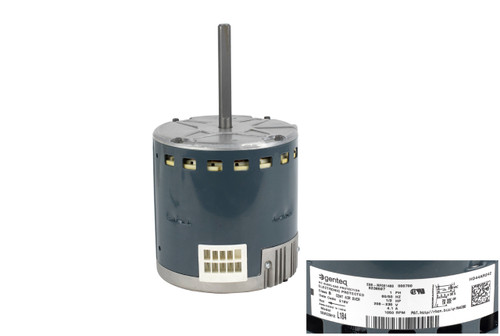

Carrier HD44AR242 ECM X-13 Blower Motor Assembly

Carrier HD44AR242 Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # HD44AR276

Includes:

• (1) - ECM X-13 Blower Motor Assembly (HD44AR242)

Specifications

• Manufacturer: genteq
• Model Number: 5SME39HX184
• Horsepower: 1/2
• Service Factor: 1.0
• Voltage: 208-230
• Hertz: 50/60
• Amperage: 4.1
• RPM: 1050
• Phase: Single
• Frame: 48
• Electronic Protected
• Motor Cooling: Continuous Air Over
• Insulation Class: B
• Bearings: Ball
• Mounting: Belly Band
• No Overload Protection
• Rotation: Counterclockwise
• Shaft Type: Single Side Flat Shaft
• Shaft Length: 3 15/16"
• Shaft Diameter: 1/2"

Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.

🚀 Note: The most common cause of ECM motor failure is poorly conditioned power. To protect sensitive ECM modules against transient voltage, power surges, lightning, and voltage spikes, it is highly recommended that you install a Zebra X13PR inline ECM protector.

Replaces Old Carrier Part Numbers

• There are no older part numbers.

Other Part Numbers

Replacement Components Division, Factory Authorized Parts, Carrier Corporation, HD 44AR 242, Motor, Blower, HD44AR242, 0 08 22529 38689 8, Genteq, Electronic Protected, Cont Air Over, 5SME39HX L184, F616Y4748710 000080, 6114403, Endura, E100625, 236833, F16V

Fits Carrier, Bryant, Payne Models:

(Press ctrl + F to find model number below.)

FB4CNF042000ABAA, FB4CNF042010ABAA, FB4CNF042015ABAA, FB4CNF042L00ABAA, FB4CNF042L10ABAA, FB4CNF042L15ABAA, FB4CNF042T00ABAA, FB4CNF042T10ABAA, FB4CNF042T15ABAA, FB4CNP042000AAAA, FB4CNP042L00AAAA, FB4CNP042L10AAAA, FB4CNP042L15AAAA, FB4CNP042T00AAAA, FB4CNPS42L00AAAA
