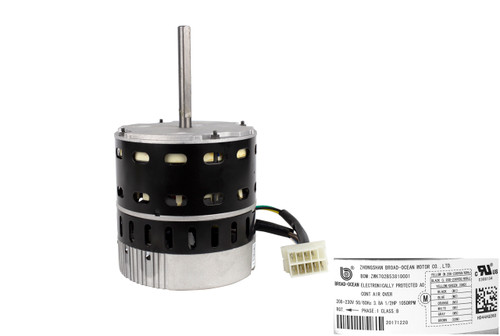

Carrier HD44AQ260 ECM X-13 Blower Motor Assembly

Carrier HD44AQ260 Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # HD44AR241

Includes:

• (1) - ECM X-13 Blower Motor Assembly (HD44AQ260)

Specifications

• Manufacturer: Zhongshan Broad-Ocean Motor Co., LTD.
• Part # ZWK702B3810001
• ECM Version: X-13 Endura Pro
• Horsepower: 1/2
• Voltage: 208-230
• Hertz: 50/60
• Amperage: 3.8
• Phase: Single
• RPM: 1050
• Frame: 48
• Electronic Protected
• Insulation Class: B
• Motor Duty/Cooling: Continuous Air Over
• Bearings: Ball
• Mounting: Belly Band
• Rotation: Counterclockwise Lead End
• Shaft Type: Single Side Flat Shaft
• Shaft Diameter: 1/2"
• Shaft Length: 3 15/16"

Country of Origin: China

Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.

🚀 Note: The most common cause of ECM motor failure is poorly conditioned power. To protect sensitive ECM modules against transient voltage, power surges, lightning, and voltage spikes, it is highly recommended that you install a Zebra X13PR inline ECM protector.

Replaces Old Carrier Part Numbers

• HD44AR241
• HD44AQ251

Other Part Numbers

MOTOR, BLOWER, HD44AQ260, Broad-Ocean, ZWK702B3810001, E308134, 20171220, D1712141600109, D5006, Replacement Components Division, Carrier Corporation, Factory Authorized Parts

Fits Carrier, Bryant, Payne Models:

(Press ctrl + F to find model number below.)

FB4CNF036L00AFAA, FB4CNF036L00EFAA, FB4CNF036L10AFAA, FB4CNF036L10EFAA, FB4CNF036L15AFAA, FB4CNF036L15EFAA, FB4CNP036L00ACAA, FB4CNP036L00ECAA, FB4CNP036L10ACAA, FB4CNP036L10ECAA, FB4CNP036L15ACAA, FB4CNP036L15ECAA, FB4CNPS36L00ACAA, FB4CNPS36L00ECAA, PF4MNP036L00ECAA
