Carrier HD42AQ251 Replacement Part
NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # HD42AQ252
Includes:

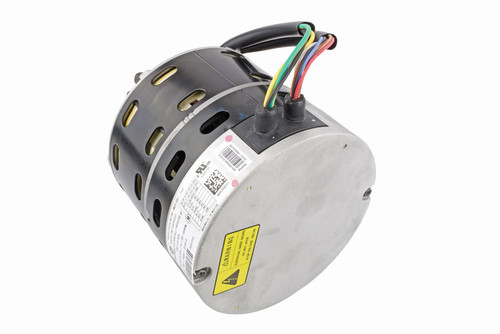

- (1) - ECM X-13 Endura Pro Blower Motor Assembly (HD42AQ251)
Specifications
- Horsepower: 1/3
- Voltage: 208/230
- Hertz: 50/60
- Number of Phases: 1
- Amps: 2.6
- RPM: 1050
- Rotation: CCW
- Shaft Diameter: 1/2"
- Shaft Length: 4"
- Insulation Class: B
- Continuous Air Over
- Electronically Protected
Country of Origin: Mexico
Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.
🚀 Note: The most common cause of ECM motor failure is poorly conditioned power. To protect sensitive ECM modules against transient voltage, power surges, lightning, and voltage spikes, it is highly recommended that you install a Zebra X13PR inline ECM protector.
Replaces Old Carrier Part Numbers
- HD42AR243
- HD42AR226
- HD42AQ234
- HD42AQ251
- HD42AQ242
Other Part Numbers
Factory Authorized Parts, Replacement Components Division, Carrier Corporation, 0 07 81897 04357 7, Broad-Ocean, X5002, X2310180500189,E308134, 20221210, ZWK702B0A3033,
Fits Carrier, Bryant, Payne Models:
(Press ctrl + F to find model number below.)
PF4MNP030L00ECAA, FB4CNF030L10EHAA, FB4CQL060L00EBAA, FB4CNP030L10EEAA, FB4CNF030L00EHAA, FB4CNF030L08EFAA, PF4MNP030L00EEAA, FB4CQL048L00EBAA, FB4CNF030L08EHAA, FB4CNP030L10ECAA, FB4CQL036L00EBAA, FB4CNP030L08EEAA, FB4CNP030LC0EEAA, FB4CSL037L00EBAA, FB4CSL030L00EDAA, FB4CSL042L00EBAA, FB4CNPS30L00EDAA, FB4CNPS30L00EBAA, FB4CQL037L00EBAA, FB4CSL060L00EBAA, FB4CSL036L00EBAA, FB4CNF030L00EFAA, FB4CQL030L00EDAA, FB4CNF030L10EFAA, FB4CQL030L00EBAA, FB4CNP030LC0ECAA, FB4CSL030L00EBAA, FB4CQL042L00EBAA, FB4CNP030L00EEAA, PF4MNP036L00EHAA, PF4MNP036L00EGAA, FB4CSL048L00EBAA, FB4CNP030L08ECAA, FB4CNP030L00ECAA
- SKU:
- HD42AQ251
- Condition:
- New
- Weight:
- 11.00 LBS
- Replaced by Part #:
- HD42AQ252
