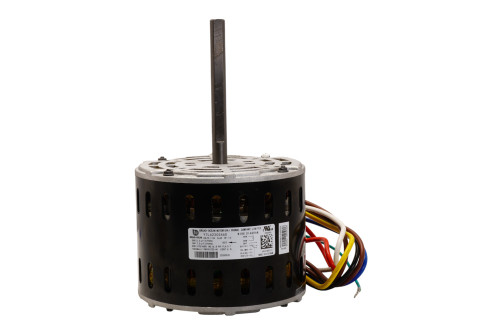

Carrier HC41SE121 Replacement Part
Includes:
- (1) - Blower Motor (HC41SE121)
Specifications
- Manufacture: genteq
- Model # 5KCP39JGN797AS
- Horsepower: 1/3
- Voltage: 115
- Hertz: 60
- Amperage: 5.80
- Phase: Single
- RPM: 1075
- Speeds: 4
- Frame: 48
- Thermally Protected
- Motor Cooling: Continuous Air Over
- Insulation Class: B
- Bearings: Sleeve
- Capacitor Needed: 5 MFD @ 370 VAC (Some Units Require 7.5 MFD @ 370 VAC)
- Mounting: Any Position
- Rotation: Counterclockwise Lead End
- Shaft Type: Single Side Flat Shaft
- Shaft Diameter: 1/2"
- Shaft Length: 4 1/4"
- WIRING:
- Number of Wires (including ground): 8
- Green Wire: Ground
- Brown Wires (Qty 2): Capacitor
- White Wire: Common
- Black Wire: High Speed
- Yellow Wire: Medium High Speed
- Blue Wire: Medium Low Speed
- Red Wire: Low Speed
Country of Origin: Mexico
Note: Always check the blower wheel on your blower assembly. Bad or unbalanced blower wheels can cause premature motor failure due to vibration. If you are not sure what blower wheel fits your blower assembly, call us at 734-326-3900.
Note: Choose one speed for Cooling terminal on control board, and one speed for Heating terminal. The other two speeds should be attached to the "Park" terminals on the board. (The speed will be determinded by a certified technician).
Replaces Old Carrier Part Numbers
- HC41SE114
- HC41ME114
- HC41ME113
- HC41ME120
- HC41SA115
- HC41SA116
- HC41SE118
- P251-2307
Other Part Numbers
5KCP39JGN797AS, 5KCP39JG N797AS, CPNHC41SE121A, CPN HC41SE121A, C209Y2072000, 2009315 000037, C12V, NP 24X327174, 97247, 2012, 5KCP39JGN797 S, 5KCP39JG N797 S, HC 41SE 121A, Bryant, Payne, Totaline
Fits Carrier, Bryant, Payne Models:
(Press ctrl + F to find model number below.)
330AAV036040AAJA, 330AAV036060AAJA, 330AAV036100AAJA, 330AAV042080AAJA, 331AAV036065AAJA, 331AAV036085AAJA, 373LAD036055ABJA, 373LAD036055ACJA, 373LAD036055GBJA, 373LAD036055GCJA, 373LAD036070ABJA, 373LAD036070ACJA, 373LAD036070GBJA, 373LAD036070GCJA, 373LAV036035AAJA, 373LAV036035ABJA, 373LAV036035GAJA, 373LAV036035GBJA, 373LAV036050ACJA, 373LAV036050GCJA, 373LAV036055AAJA, 373LAV036055ABJA, 373LAV036055GAJA, 373LAV036055GBJA, 373LAV036070ACJA, 373LAV036070GCJA, 373LAV036075AAJA, 373LAV036075ABJA, 373LAV036075GAJA, 373LAV036075GBJA, 373LAV036095ACJA, 373LAV036095GCJA, 376CAV036040ABJA, 376CAV036040ACJA, 376CAV036040GBJA, 376CAV036040GCJA, 376CAV036050ADJA, 376CAV036050GDJA, 376CAV036055ABJA, 376CAV036055ACJA, 376CAV036055GBJA, 376CAV036055GCJA, 376CAV036070ADJA, 376CAV036070GDJA, 376CAV036075ABJA, 376CAV036075ACJA, 376CAV036075GBJA, 376CAV036075GCJA, 376CAV036096ADJA, 376CAV036096GDJA, 376C--036040-A--, 376C--036055-A--, 376C--036075-A--, 383KAD036050ABJA, 383KAD036050ACJA, 383KAD036050GBJA, 383KAD036050GCJA, 383KAD036085ABJA, 383KAD036085ACJA, 383KAD036085GBJA, 383KAD036085GCJA, 383KAD042070ABJA, 383KAD042070ACJA, 383KAD042070GBJA, 383KAD042070GCJA, 383KAV036035AAJA, 383KAV036035ABJA, 383KAV036035GAJA, 383KAV036035GBJA, 383KAV036045ACJA, 383KAV036055AAJA, 383KAV036055ABJA, 383KAV036055GAJA, 383KAV036055GBJA, 383KAV036070ACJA, 383KAV036075AAJA, 383KAV036075GAJA, 383KAV036090AAJA, 383KAV036090ABJA, 383KAV036090GAJA, 383KAV036090GBJA, 383KAV036111ACJA, 383KAV042075ABJA, 383KAV042075GBJA, 383KAV042091ACJA, 394HAD036050AAJA, 394HAD036050ABJA, 394HAD036050GAJA, 394HAD036050GBJA, 394HAD036065ACJA, 394HAD036065GCJA, 394HAD036085AAJA, 394HAD036085ABJA, 394HAD036085GAJA, 394HAD036085GBJA, 394HAD036105ACJA, 394HAD036105GCJA, 394HAD042070AAJA, 394HAD042070ABJA, 394HAD042070GAJA, 394HAD042070GBJA, 394HAD042086ACJA, 394HAD042086GCJA, 394JAZ036065AAFA, 394J--036065-A--, 394J--036065-B--, 394J--036065-C--, 395B--036095-A--, 395B--036095-B--, 395CAV036040ACJA, 395CAV036040GCJA, 395CAV036040-A--, 395CAV036045ADJA, 395CAV036045GDJA, 395CAV036055ABJA, 395CAV036055ACJA, 395CAV036055GBJA, 395CAV036055GCJA, 395CAV036055-A--, 395CAV036070ADJA, 395CAV036070GDJA, 395CAV036075ABJA, 395CAV036075GBJA, 395CAV036075-A--, 395CAV036090ABJA, 395CAV036090ACJA, 395CAV036090GBJA, 395CAV036090GCJA, 395CAV036090-A--, 395CAV036111ADJA, 395CAV036111GDJA, 395CAV042075ACJA, 395CAV042075GCJA, 395CAV042091ADJA, 395CAV042091GDJA, 396HAD036055AAJA, 396HAD036055ABJA, 396HAD036055GAJA, 396HAD036055GBJA, 396HAD036070AAJA, 396HAD036070ABJA, 396HAD036070GAJA, 396HAD036070GBJA, 396HAD036071ACJA, 396HAD036071GCJA, 396HAD036091ACJA, 396HAD036091GCJA, 397HAW036100-A--, 397HAW036100-B--, 397HAW036100-C--, 398AAV036040AAKA, 398AAV036040GAKA, 398AAV036060AAKA, 398AAV036060GAKA, 398AAV036080AAKA, 398AAV036080GAKA, 398AAW036040-D--, 398AAW036040-E--, 398AAW036040-F--, 398AAW036040-G--, 398AAW036060-B--, 398AAW036060-C--, 398AAW036060-D--, 398AAW036060-E--, 398AAW036060-F--, 398AAW036060-G--, 398AAW036080-B--, 398AAW036080-C--, 398AAW036080-D--, 398AAW036080-E--, 398AAW036080-F--, 398AAW036080-G--, 398AAZ036040AAKA, 398AAZ036040GAKA, 398AAZ036060AAKA, 398AAZ036060GAKA, 398AAZ036080AAKA, 398AAZ036080GAKA, 399AAV036040AAKA, 399AAV036040GAKA, 399AAV036060AAKA, 399AAV036060GAKA, 399AAW036040-A--, 399AAW036040-B--, 399AAW036060-A--, 399AAW036060-B--, 399AAZ036040AAKA, 399AAZ036060AAKA, 58DFA055-C-100GC, 58DFA055-C-110GC, 58DFA055---100GC, 58DFA055---110GC, 58DFA070-C-100GC, 58DFA070-C-110GC, 58DFA070---100GC, 58DFA070---110GC, 58DFA071---12012, 58DFA091---12012, 58DHC040-C-110GC, 58DHC040---100GC, 58DHC040---110GC, 58DHC055-C-110GC, 58DHC055---100GC, 58DHC055---110GC, 58DHC075-C-110GC, 58DHC075---100GC, 58DHC075---110GC, 58DXA040---100GG, 58DXA060---100GG, 58DXC040-C-100GG, 58DXC040---100GG, 58DXC060-C-100GG, 58DXC060---100GG, 58DX-040---110GG, 58DX-060---110GG, 58GFA050-C-100GC, 58GFA050-C-110GC, 58GFA050---100GC, 58GFA050---110GC, 58GFA065-C-12012, 58GFA065---12012, 58GFA070-C-100HC, 58GFA070-C-110HC, 58GFA070---100HC, 58GFA070---110HC, 58GFA085-C-100GC, 58GFA085-C-110GC, 58GFA085---100GC, 58GFA085---110GC, 58GFA086-C-12014, 58GFA086---12014, 58GFA105-C-12012, 58GFA105---12012, 58GSC065---130GB, 58PAP050-C-110GC, 58PAP050-C-150GC, 58PAP050---110GC, 58PAP050---120GC, 58PAP070-C-110HC, 58PAP070-C-120HC, 58PAP070---110HC, 58PAP070---120HC, 58PAP085-C-110GC, 58PAP085-C-120GC, 58PAP085---110GC, 58PAP085---120GC, 58PAV035-C-100GC, 58PAV035-C-110GC, 58PAV035---100GC, 58PAV035---110GC, 58PAV045---12012, 58PAV055-C-100GC, 58PAV055-C-110GC, 58PAV055---100GC, 58PAV055---110GC, 58PAV070---12012, 58PAV075-C-100GC, 58PAV075-C-110HC, 58PAV075---100GC, 58PAV075---110HC, 58PAV090-C-100GC, 58PAV090-C-110GC, 58PAV090---100GC, 58PAV090---110GC, 58PAV090---12014, 58PAV111---12012, 58RAP055-C-110GC, 58RAP055-C-120GC, 58RAP055---110GC, 58RAP055---120GC, 58RAP070-C-110GC, 58RAP070-C-120GC, 58RAP070---110GC, 58RAP070---120GC, 58RAV035-C-101GC, 58RAV035-C-110GC, 58RAV035---101GC, 58RAV035---110GC, 58RAV050---12012, 58RAV055-C-101GC, 58RAV055-C-110GC, 58RAV055---101GC, 58RAV055---110GC, 58RAV070---12012, 58RAV075-C-101GC, 58RAV075-C-110GC, 58RAV075---101GC, 58RAV075---110GC, 58RAV095---12012, 58SSC040-C-100GC, 58SSC040-C-110GC, 58SSC040---100GC, 58SSC040---110GC, 58SSC055-C-100GC, 58SSC055-C-110GC, 58SSC055---100GC, 58SSC055---110GC, 58SSC075-C-100GC, 58SSC075-C-110GC, 58SSC075---100GC, 58SSC075---110GC, 58SSC090-C-100GC, 58SSC090-C-110GC, 58SSC090---100GC, 58SSC090---110GC, 58SS-100---101BC, 58SS-100---111BC, 58SS-100---121BC, 58SXA040-C-100GG, 58SXA040---100GG, 58SXA060-C-100GG, 58SXA060---100GG, 58SXA080-C-100GG, 58SXA080---100GG, 58SXC040-C-100GG, 58SXC040---100GG, 58SXC060-C-100GG, 58SXC060---100GG, 58SXC080-C-100GG, 58SXC080---100GG, 58SX-040-C-190GG, 58SX-040---190GG, 58SX-060-C-190GG, 58SX-060---190GG, 58SX-080-C-190GG, 58SX-080---190GG, 58TMA065---10012, 58TMA085---10012, 58TUA040---10012, 58TUA060---10012, 58TUA080---10014, 58TUA100---10012, 58WAV040-C-100GC, 58WAV040---100GC, 58WAV045---11012, 58WAV055-C-100GC, 58WAV055---100GC, 58WAV070---11012, 58WAV075-C-100HC, 58WAV075---100HC, 58WAV090-C-100GC, 58WAV090---100GC, 58WAV091---11014, 58WAV111---11012, 58ZAV040-C-100GC, 58ZAV040---100GC, 58ZAV050---11012, 58ZAV055-C-100GC, 58ZAV055---100GC, 58ZAV070---11012, 58ZAV075-C-100GC, 58ZAV075---100GC, 58ZAV096---11012, GA1AAD036050AAJA, GA1AAD036050ABJA, GA1AAD036065ACJA, GA1AAD036085AAJA, GA1AAD036085ABJA, GA1AAD036105ACJA, GA1AAD042070AAJA, GA1AAD042070ABJA, GA1AAD042086ACJA, GA2AAD036055AAJA, GA2AAD036055ABJA, GA2AAD036070AAJA, GA2AAD036070ABJA, GA2AAD036071ACJA, GA2AAD036091ACJA, GB1AAV036035AAJA, GB1AAV036045ABJA, GB1AAV036055AAJA, GB1AAV036065ABJA, GB1AAV036090AAJA, GB1AAV036111ABJA, GB1AAV042075AAJA, GB1AAV042091ABJA, GB3AAV036035AAJA, GB3AAV036050ABJA, GB3AAV036055AAJA, GB3AAV036070ABJA, GB3AAV036075AAJA, GB3AAV036075ABJA
