Carrier 347822-760 Replacement Part
NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 349336-760

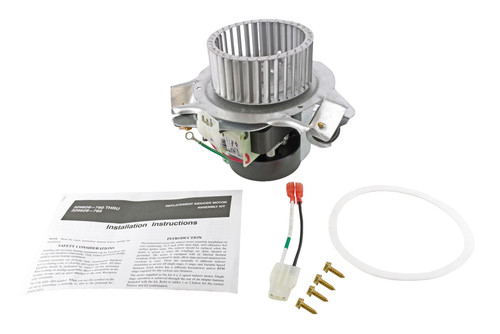

Includes:
- (1) - Draft Inducer Motor Assembly (347822-760)
- (3) - Screws (-)
- (1) - Gasket (-)
- (1) - Adapter Harness (-)
- (1) - Instructions (IIK-347822-01)
Specifications
- Manufacturer: Fasco
- Voltage: 115
- Hertz: 60
- Number of Phases: 1
- Hi Speed: 3000 RPM Ref. 8.2 MHP .83 FLA
- Lo Speed: 2000 RPM Ref. 2.45 MHP .25 FLA
Country of Origin: Mexico
Replaces Old Carrier Part Numbers
- 347822-760
- 326628-760
- 326628-710
- HC21ZE124
- HC21ZE124
Other Part Numbers
Factory Authorized Parts, Replacement Components Division, Carrier Corporation, 00781897043850, 348529-401, 327264 401, LA11XA048, 347797-401, JK7820507-1, 71583393J, E48562,
Fits Carrier, Bryant, Payne Models:
(Press ctrl + F to find model number below.)
58SB0A070E171212, 58SB1A070E171212, 801SA36070E14A-B, 810SA48070E17A-B, 810SA36045E17A-B, 821TA36070V14A-C, PG80ESLA36070BBA, PG80ESAA48070BBA, PG80ESAA48070CBA, PG80ESLA36070ABA, PG80ESLA48070BBA, 811SA36070E17A-B, 820TA48070V17A-C, 821TA36045V14A-D, 820SA36045V14A-B, 820SA48045V17A-B, 820SA48070V17A-B, 880TA36070C14A-C, PG80ESLA48070CBA, PG80ESLA36045ABA, PG80VTLA48070BCA, PG80ESAA36045ABA, PG80ESAA36070ABA, PG80ESAA36045BBA, PG80ESAA36070BBA, PG80VTLA36070ACA, PG80VTLA36045ADA, PG80ESLA36045BBA, 58SB1A070E171216, 58SB0A045E171212, 58SB1A045E141212, 58SB1A070E141212, 58SC1A045E171212, 58SC0A045E171212, 58SC0A070E211216, 58TP0A070V171316, 58SC0A070E141212, 58SC1A070E141212, 58TP1A070V171316, 58SB1A070E211216, 58SC1A070E171212, 58SP1A045V141212, 58SC1A070E171216, 58SP1A045V171216, 58TN1A045C171312, 58SC0A070E171216, 58SC1A045E141212, 58TN0A070C211320, 58TN1A070C141312, 58TN1A070C171316, 58SP0A045V171216, 58TP0A045V141412, 58TN1A070C211320, 58TP0A070V141312, 811SA48070E17A-B, 821SA36045V14A-B, 811SA36070E14A-B, 801SA36070E17A-B, 800SA36045E17A-B, 881TA48070C17A-C, 881TA36045C17A-C, 881TA60070C21A-C, 880TA60070C21A-C, 880TA36045C17A-C, 880TA48070C17A-C, 811SA48070E21A-B, 821SA48070V17A-B, 800SA48070E17A-B, 821SA48045V17A-B, 820SA60070V21A-B, 800SA36045E14A-B, 811SA36045E17A-B, 800SA48070E21A-B, 800SA36070E14A-B, 801SA36045E14A-B, 801SA36045E17A-B, 801SA48070E17A-B, 810SA36070E17A-B, 810SA36045E14A-B, 810SA36070E14A-B, 810SA48070E21A-B, 801SA48070E21A-B, 800SA36070E17A-B, 821TA48070V17A-C, 881TA36070C14A-C, 811SA36045E14A-B, 820TA36045V14A-D, 821SA60070V21A-B, 820TA36070V14A-C, 58TN0A045C171312, 58TN0A070C141312, 58TN0A070C171316, 58SP1A070V171216, 58SC0A070E171212, 58SC0A045E141212, 58SP1A070V211220, 58SC1A070E211216, 58SP0A045V141212, 58SP0A070V211220, 58SP0A070V171216, 58TP1A070V141312, 58TP1A045V141412, 58SB0A070E171216, 58SB0A045E141212, 58SB0A070E141212, 58SB1A045E171212, 58SB0A070E211216
- SKU:
- 347822-760
- Condition:
- New
- Weight:
- 9.00 LBS
- Replaced by Part #:
- 349336-760
