Carrier 33CNNSTKIT-02 Network Service Tool V Kit

Carrier 33CNNSTKIT-02 Replacement Part

NOTE: THIS PART IS NO LONGER AVAILABLE. IT HAS BEEN REPLACED BY PART # 33CNNSTKIT-03

Includes:

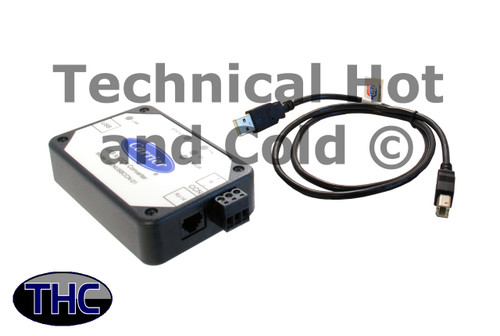

• (1) - Network Service Tool (33CNNSTKIT-02)
• (1) - USB (A) to USB (B) Cable (-)
• (1) - Flash Drive (-)
• (1) - Additional Notes (-)

Specifications

• APPLICATION
• Network Service Tool V (NST V) is Designed to Be the Primary Technician Interface to Start Up and
• Troubleshoot the Carrier Comfort Network (CCN). The Software is Designed to Run On Any Computer Utilizing the Windows® 2000/XP/Vista/7/10 Operating System. The Computer Needs a USB Port to Support the USB to CCN Converter Which is Required to Run NST V
• NST V Provides an Environment from Which You Can Easily Perform the Following Tasks
• FEATURES
• Display Current Controller Status and Configuration Data
• Dynamically Switch Between Customary US or Metric Units
• Install, Commission, Monitor, and Control Any CCN Device Including Comfort Controllers and Universal Controllers (Note: 203FID and VVT Gateway are NOT Supported)
• Backup and Restore CCN Device Configuration
• View and Save CCN Network Alarms
• Configure and Troubleshoot the CCN Network With the Aid of Bus Diagnostic Utilities Which Includes Bus Monitor
• Create and Edit BEST++™ (Custom) Program
• Supports USB, Ethernet and Modem Dialup Connections
• Supports ComfortVIEW CCN Import/Export to Move Databases Between NST V and ComfortVIEW
• COMPUTER REQUIREMENTS
• Windows 2000
• Windows XP Professional
• Windows Vista Business or Ultimate
• Windows 7 Professional or Ultimate
• HARDWARE REQUIREMENTS
• Pentium 600 MHz Processor with 256K Cache RAM
• 512 Mb of Memory
• 4 GB Hard Disk with 1 GB Free for NST V
• CD-ROM Drive
• One Free USB Port

Country of Origin: USA

Replaces Old Carrier Part Numbers

• 33CNNSTKIT-01

Other Part Numbers

FG-Network Service Tool V Kit, 33SNNSTKIT-02, USB to RS485 Converter, RS485, USB, 60000467, Carrier Comfort Control Network

Fits Carrier, Bryant, Payne Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
