Carrier 0874P-0187 Replacement Part
Includes:

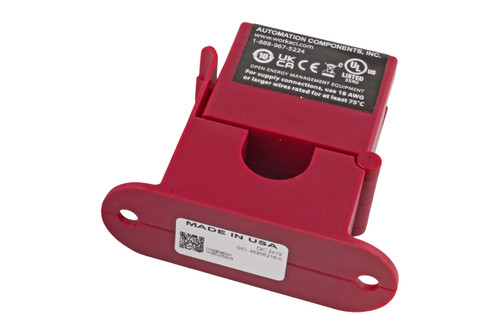

- (1) - Current Sensor (0874P-0187)
- (2) - Screws (-)
- (1) - Instructions (I0000558)
Specifications
- Manufacturer: Automation Components Inc
- Manufacturer Part #: A/MSCS-A
- Adjustable Mini Current Switch
- 0.70 - 150 Amp Switch
- Color: Maroon
- Height: 2-3/8"
- Length: 1"
- Width: 2-3/4"
- Sense Range: 0.70 - 150 A, 0-600 VAC
- Operating Temp Range: -30 Degrees C To 60 Degrees C
- Adj. Range: 0.70-150A
- Trip On = Above Trip Point
- **For Supply Connections, Use 18 AWG Or Larger Wires Rated For At Least 75 Degrees C
- **Insulated Conductors Only, Use Copper Conductors Only
Country of Origin: USA
Replaces Old Carrier Part Numbers
- There are no older part numbers.
Other Part Numbers
Factory Authorized Parts, Replacement Components Division, Carrier Corporation, Sensor,Current, LF16-049, 0 08 22529 50039 3, E/4, 2419, 46906216-0, 146187, Automation Components Inc, 3SR0, D/C2419, A/MSCS-A, 117855,
Fits Carrier, Bryant, Payne Models:
(Press ctrl + F to find model number below.)
Various. (Call 734-326-3900 with your model and serial number for more information.)
