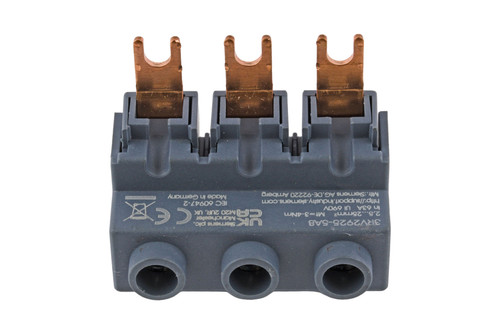

BKW B40009842501 Terminal Block Sirius

BKW B40009842501 Replacement Part

Includes:

• (1) - Terminal Block Sirius (B40009842501)

Specifications

• Country of origin: Germany
• Product Lifecycle (PLM): PM300:Active Product
• Export control regulations: AL : N / ECCN : N
• Standard lead time ex-works: 1 Day
• Compliance with the substance restrictions according to RoHS directive: Since: 01.10.2009
• Product Class: A
• Design of the product: Type E
• Size of the circuit-breaker: S00, S0
• Protection class IP on the front: 690 V (Insulation voltage with degree of pollution 3 rated value)
• Ambient temperature: -50°C...+80°C (during storage), -20°C...+60°C (during operation)
• Ampacity max: 40 A
• W x H x D: 44.8mm x 38.9mm x 73.6mm
• Suitability for use enables assembly of self-protected combination motor controllers (type E) acc. to UL 508 Note: a construction with 3RV1915 bus bars is not possible
• Type of electrical connection for main current circuit: screw-type terminals
• Certificate of suitability: CE / UL / CSA / CCC
• Use with type: 3RV2.1/ 2.2/ 8.1/ 6.2/ 3RA8
• Short circuit with: 3RV2.1/ 2.2/ 6.1/ 6.2: 85 kA, 480V; 30kA, 800V, 3RA6; 30kA, 480V; 10kA, 600V

Replaces Old BKW Part Numbers

• There are no older part numbers.

Other Part Numbers

4011209719767, 662643925388, 85369010, CC-IC10, 5335, 3RV2928-1H, IEC/EN, 60947, DE-92220,

Fits Models:

(Press ctrl + F to find model number below.)

Various. (Call 734-326-3900 with your model and serial number for more information.)
