AAON OE392-12 Replacement Part
Includes:

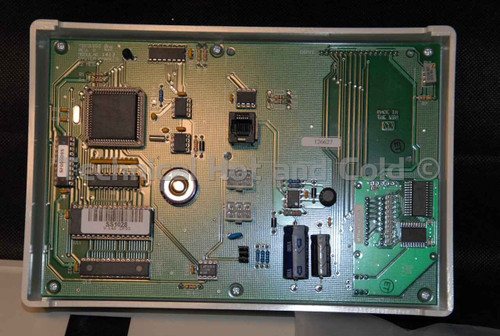

- (1) - System Manager
- (1) - Installation Instructions
- (1) - Wiring Harness (Part Numbers: HZ000121-12)
Specifications
- Manufacturer: WattMaster Controls Inc.
- Input Voltage: 24
- Max Volt / Amperage: 25
- Class: 2
- Max. Ambient Temperatue: 65 (Degree Celcius)
- Wiring Diagram:
- Number of Wires on Terminal: 6
- White Wire: "T" Terminal on Control Board
- Drain Wire: "SHLD" Terminal on Control Board
- Black Wire: "R" Terminal on Control Board
- Red Wire: "24VAC" Transformer
- Brown Wire: "Ground" Transformer
- Green Wire: "Ground" Terminal
Replaces Old AAON Part Numbers
- OE392-12
Other Part Numbers
WattMaster Controls Inc., HZ000121-12, Orion Control Systems, CMP/CL3P/FPLP, 75C -- CMP FTS Made In USA RoHS-2, Compliant -- 11/06/14, 19:14:34 14342, 8005669-00
Fits Models:
(Press ctrl + F to find model number below.)
Various. (Call 734-326-3900 with your model and serial number for more information.)
